Once a peptide has been synthesized, it is rarely ready for use straight from the reaction vessel. Crude material contains truncated sequences, deletion products, side products, and residual reagents. This chapter explains why purification and analytical testing are critical, how techniques like high-performance liquid chromatography (HPLC) and mass spectrometry (MS) work, and how researchers interpret impurity profiles and certificates of analysis (COAs) to judge peptide quality.
3.1 Why Purity Matters
In peptide science, purity directly affects experimental reliability. Even small amounts of structurally related impurities can bind to the same receptors, interfere with signaling pathways, or alter the readout of biochemical assays. When a peptide is used as a probe or tool compound, a poorly controlled impurity profile can produce misleading results that are hard to reproduce or interpret.
High purity also simplifies downstream formulation and stability studies. If multiple unknown impurities are present, it becomes difficult to know whether an observed change in an experiment is due to the intended peptide or to one of the by-products. This is why modern peptide manufacturing relies heavily on chromatographic purification and analytical verification (chromatography best-practices).
3.2 High-Performance Liquid Chromatography (HPLC)
Reversed-phase HPLC is the standard technique for both purifying and analyzing peptides. In a typical setup, the stationary phase is a hydrophobic silica-based material (e.g., C18), and the mobile phase is a mixture of water and an organic solvent such as acetonitrile with a small amount of acid (often TFA or formic acid). Peptides are separated based on differences in hydrophobicity, charge, and subtle structural features as they travel through the column.
A UV detector, frequently set around 214 nm or 220 nm to monitor peptide bonds, records the absorbance of material exiting the column as a function of time. The result is a chromatogram: a plot of absorbance versus retention time. Each peak corresponds to one or more components in the mixture. The area under the main peak compared with the total peak area provides an estimate of chromatographic purity.

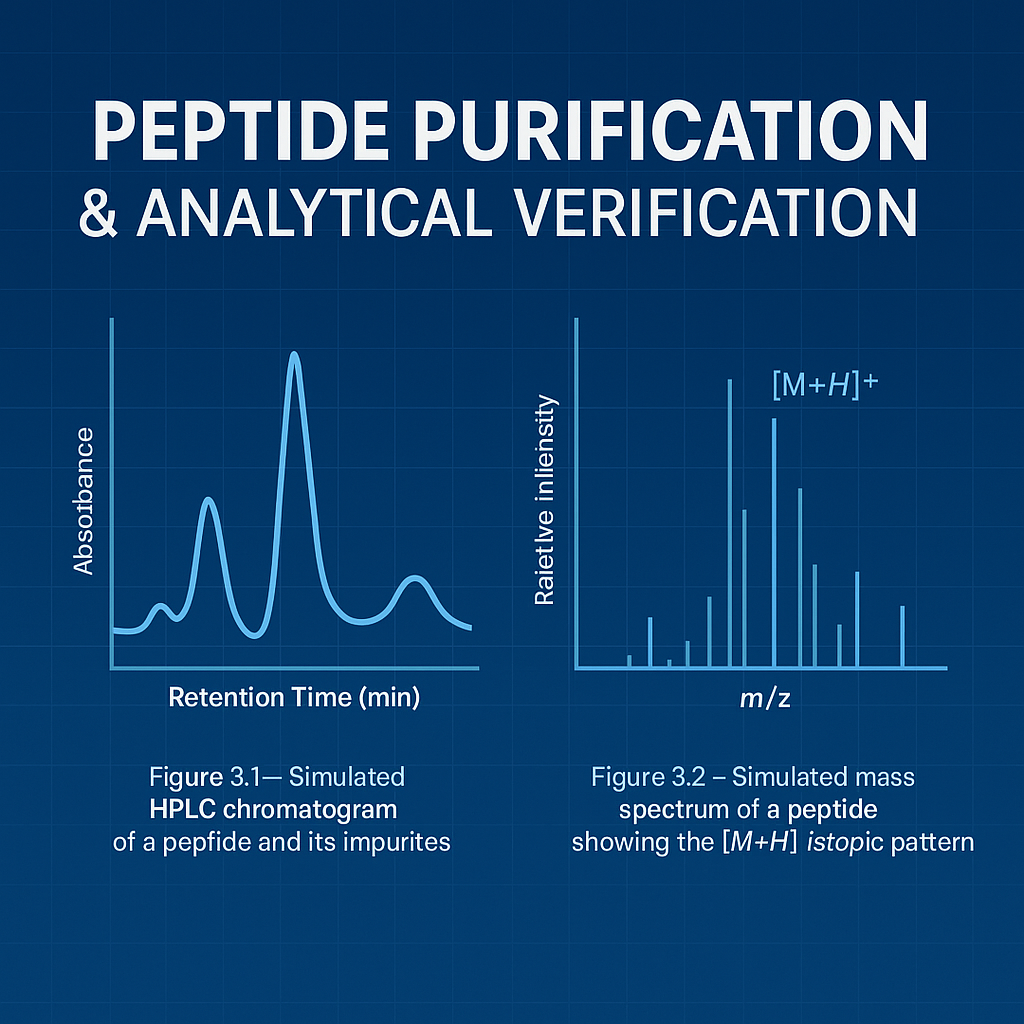

Figure 3.1 – Simulated HPLC chromatogram of a peptide and its impurities.
In practice, peptide HPLC methods are tuned for each sequence. Gradient steepness, column type, temperature, and mobile phase composition all influence peak shape and resolution (HPLC method development literature). Well-resolved, symmetrical peaks make it easier to isolate the desired product and confirm that impurities are below an acceptable threshold.
3.3 Mass Spectrometry – Confirming Molecular Weight
Whereas HPLC tells you how many components are present and in what relative amounts, mass spectrometry (MS) confirms the identity of those components by measuring their mass-to-charge ratios (m/z). For peptides, techniques such as electrospray ionization (ESI) or MALDI are commonly used to create gas-phase ions that can be analyzed by the mass spectrometer.
A typical peptide MS readout shows a series of peaks corresponding to different charge states or isotopic variants. The experimental mass is compared with the theoretical mass calculated from the peptide sequence. A close match gives strong evidence that the main component is the intended peptide (sequence and composition data).
Figure 3.2 – Simulated mass spectrum of a peptide showing the [M+H]+ isotopic pattern.
High-resolution MS can distinguish between species that differ by just a fraction of a Dalton, which is essential for detecting modifications such as oxidation, deamidation, or incomplete deprotection. When combined with HPLC, MS provides a powerful orthogonal confirmation of peptide identity (peptide structure and analysis overview).
3.4 Impurity Profiles
Every peptide batch has an impurity profile – a description of the minor components present alongside the main product. These impurities may include:
- Truncated peptides (missing one or more residues).
- Deletion sequences (skipped residues).
- Insertion or substitution sequences (incorrect amino acids).
- Side products from side-chain reactions or incomplete deprotection.
- Oxidized or otherwise chemically modified versions of the peptide.
A typical analytical HPLC run will show a dominant peak corresponding to the main peptide and smaller peaks corresponding to impurities. The proportion of total area occupied by the main peak gives a convenient figure for chromatographic purity, but the nature of the impurities also matters. For example, a small amount of a closely related analogue that shares the same target could be more significant than a trace of an unrelated by-product.
| Impurity Type | Likely Origin | Potential Impact |
|---|---|---|
| Truncated peptide | Incomplete coupling in SPPS | May bind weakly or not at all; can dilute apparent potency. |
| Deletion sequence | Skipped coupling or incomplete deprotection | Alters binding interface; may compete with or obscure the main effect. |
| Substitution variant | Racemization or mis-activated amino acids | Can change charge, hydrophobicity, or receptor selectivity. |
| Oxidized peptide | Exposure to oxygen or light during synthesis/storage | May destabilize structure or reduce binding affinity. |
| Protecting-group adduct | Incomplete removal during cleavage | Can interfere with solubility or introduce unexpected reactivity. |
3.5 Chromatographic Purity vs Peptide Integrity
Percent purity on an HPLC trace is a useful but incomplete descriptor. A peptide might show >99% chromatographic purity while still containing:
- A small amount of oxidized species that co-elute with the main peak.
- Silent modifications that have little effect on retention time.
- Counter-ion variations or tightly associated excipients.
For this reason, chromatographic purity must be interpreted together with mass spectrometry and other orthogonal data. A clean, symmetrical main peak plus a mass spectrum that matches the theoretical mass strongly suggests that the peptide is correctly assembled and free from major structural defects. More advanced analyses, such as peptide mapping or NMR, may be used for high-value or particularly sensitive applications (organic and analytical method references).
3.6 Counter-Ions and Salt Forms
Many peptides are isolated as salts rather than as strictly neutral molecules. Common counter-ions include trifluoroacetate (TFA), acetate, chloride, and others derived from the reagents used during synthesis and purification. The identity and amount of these counter-ions can influence:
- Peptide solubility and hygroscopicity.
- pH of solutions after reconstitution.
- Long-term stability and compatibility with specific buffers.
Analytical techniques such as ion chromatography or NMR, combined with careful process control, can be used to minimize residual TFA or to perform counter-ion exchange when required by a particular formulation or research protocol.
3.7 Reading and Interpreting a Peptide Certificate of Analysis (COA)
A certificate of analysis (COA) summarizes the key analytical data for a peptide batch. While formats vary between manufacturers, a typical COA will include:
- Peptide name, sequence, and batch or lot number.
- Purity by analytical HPLC, often reported as a percentage.
- Observed mass (MS) compared with theoretical mass.
- Appearance (e.g., white to off-white lyophilized powder).
- Residual solvents or moisture content, when relevant.
- Information on counter-ions or salt form.
When evaluating a COA, researchers look for consistency between batches and agreement with internal data from their own analytical checks, especially for critical experiments. A clear, well-documented COA backed by robust analytical methods is one of the strongest indicators of professional peptide manufacturing practice (NCBI analytical chemistry context).
3.8 Common Peptide Contaminants and Their Origins
Understanding where contaminants come from helps manufacturers refine their processes and helps researchers interpret analytical data more intelligently. Typical sources include:
- Synthesis-related – incomplete couplings, side reactions, racemization.
- Cleavage and workup – residual scavengers, protecting group fragments.
- Handling and storage – oxidation, hydrolysis, adsorption to surfaces, moisture uptake.
- Equipment cross-contamination – carryover from prior syntheses if cleaning is inadequate.
Robust standard operating procedures (SOPs), validated cleaning methods, and routine in-process controls are used to keep these contaminants at low levels. When a contaminant pattern is observed repeatedly, it often points to a specific step or reagent that can be optimized or replaced.
3.9 Summary of Chapter 3
Purification and analytical verification are the quality backbone of peptide science. HPLC provides a detailed picture of the impurity profile, mass spectrometry confirms molecular weight and detects subtle modifications, and other orthogonal methods refine the understanding of each batch. Together with a well-structured COA, these tools give researchers the confidence that the peptide they receive matches the sequence on the label.
In the next chapter, we move from batch quality to stability, solubility, and degradation, exploring how storage conditions and chemical environment shape the real-world behavior and shelf life of peptide materials.
